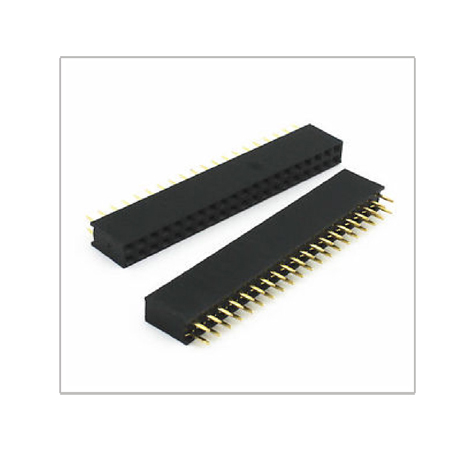

2.54mm Female Header

Code: PHF-11-2XXS-C000

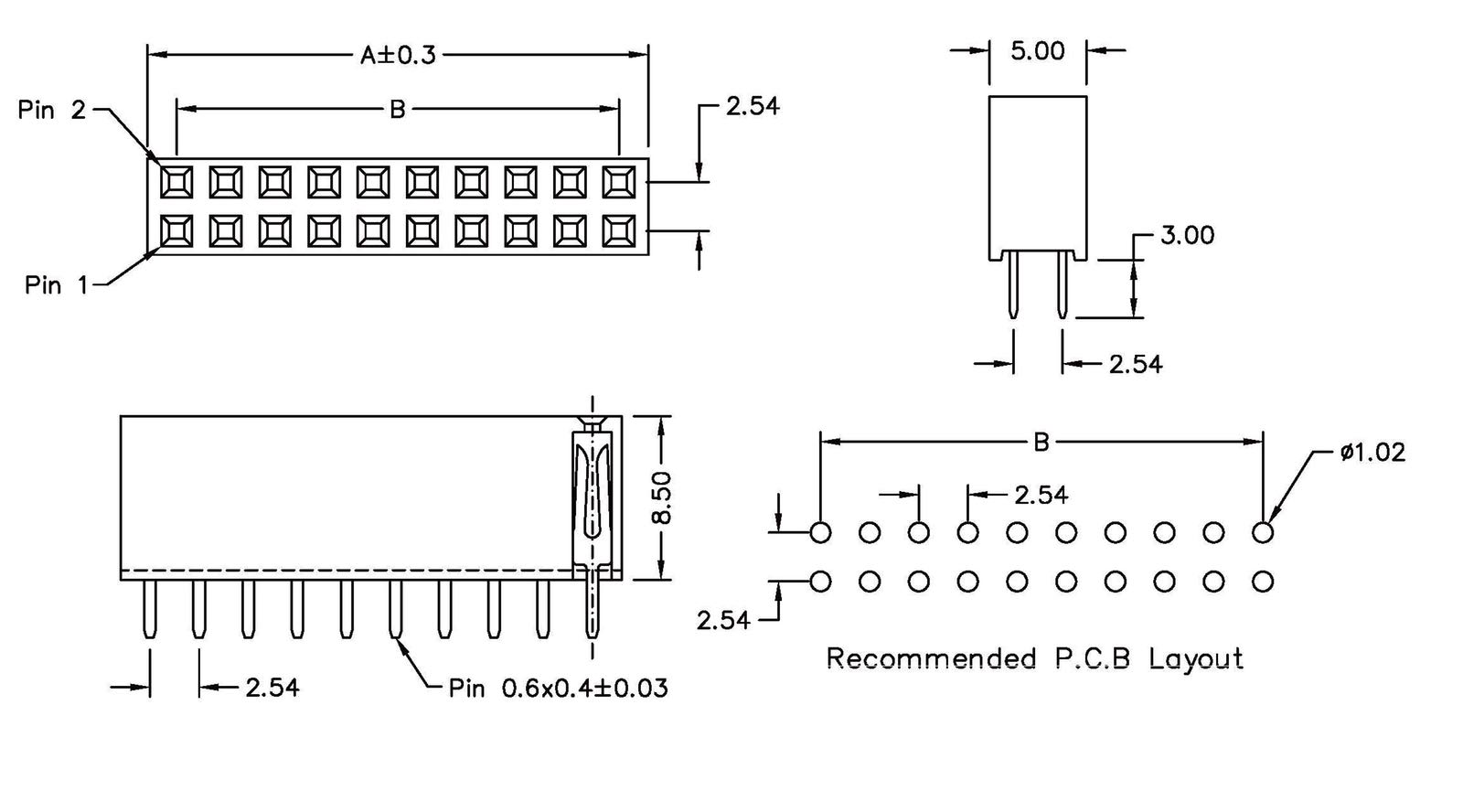

Pitch:2.54mm (.100″) Pin Header – Female / Dual Row Straight Type

No. of Poles : 02~4P

Description

Item No : PHF-11-2XXS-C000

Specifications:
Current Rating: 3A
Contact resistance: 20mΩ max.
Dielectric Withstanding Voltage: 500V AC/1min.
Insulation Resistance: 500M Ω min.
Insulator: Polyester (UL94V-0), P.B.T.
Contact: Brass
Operation Temperature Range: – 55℃ to + 105 ℃
