Description
Housing PA66 UL94V-0
Contact Brass, Tin-Plated
Screw Steel, M4 Ni-Plated
Item No : SG89-A
| Electrical: | ||
| Rated voltage | 300V | |
| Rated current | 30A | |
| Wire range | 22-10AWG | 6.0mm |
| Mechanical | ||
| Torque | 1.2N.m 10.6Lb.in | |
| Operating Temp | -40°C~+80°C | |

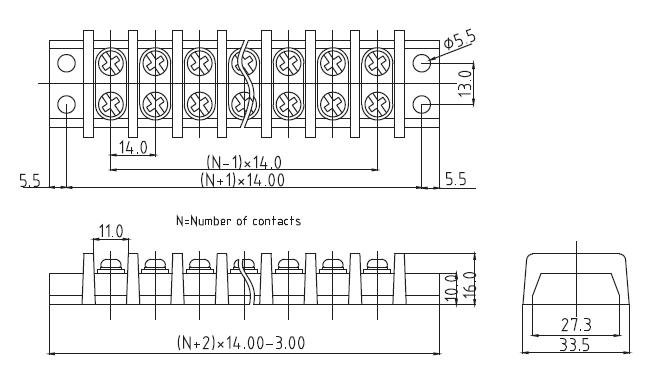

| Dimensions: | ||
| Pitch | 14mm (.551″) | |
| Poles | 2P – 18P |
