Description

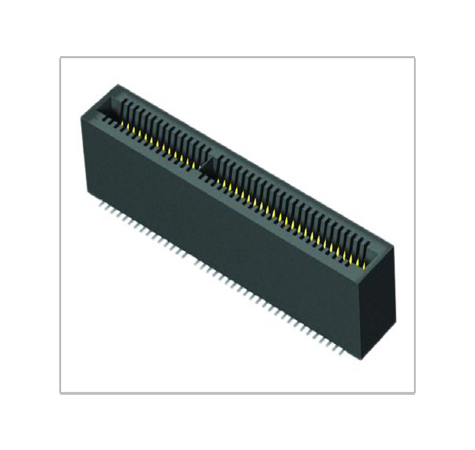

Item No: ACE127-XXSA
| Specifications: | |
| Current Rating: | 1 Amp |
| Dielectric Withstanding Voltage: | 250V VAC RMS 60Hz For 1 Minute |
| Insulation Resistance: | 1000 Megohms Min.. At 500 VDC |
| Contact Resistance: | 30 Milliohms Max. |
| Temperature Ronge: | -55°C To +85°C |
| Insulator: | PA66+G.F., Black |
| Contact: | Brass Gold Flash On Contact Area Tin Plated on Solder Tails, Over Nickel |
| Retention Force: | 460 Grams Mox Fer Contact |
| Insertion Force: | 230 Grams Mox Fer Contact Pair |
| Withdrawal Force: | 15 Grams Min Fer Contact Pair |
| RoHS Compliant |
