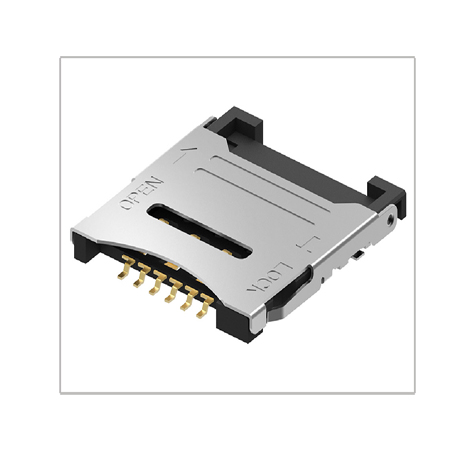

SIM Card Socket Connector / Hinge-Type / S.M.D

Code: ASM000-06DT

SIM Card Socket / Hinge-Type / S.M.D

No. of Pin: 6P

Datasheet

Description

Item No : ASM000-06DT

Specifications:
Current Rating: 0.5A Max.
Dielectric Withstanding Voltage: 500V AC R.M.S. For 1 Minute
Insulation Resistance: 1000 Megohms Min. At DC 500V
Contact Resistance: 50 milliohms Max.
Durability: 5000 Cycles
Manual Soldering: 360°C, 3 Sec. Max.
Vapor Phase: 215°C, 30 Sec. Max.
IR Reflow: 260°C, 15 Sec. Max.
Operation Temperature: -25°C To +85°C
Housing: Thermoplastic (UL94 V-0)
Terminal: Phosphor Bronze Gold Plated On Contact Area, Tin Plating On Solder Tail.
