Description

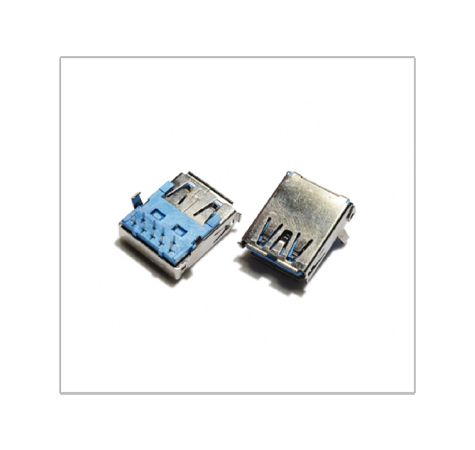

Item No: USB-03F-R-BU
| Specification | |
| Current Rating: | 1A Max. |
| Voltage Rating: | 30V |
| Dielectric Withstanding: | 100V AC |
| Contact Resistance: | 30 Milliohms Max. |
| Insulation Resistance: | 1000 Megaohms Min. |
| Operation Temperature: | – 55℃ to+85℃ |
| Housing & Cover: | PBT +30% G.F. (UL94V-0), Blue |
| Shell: | Brass, Nickel Plated Over All |
| 4P Contact: | Phosphor Bronze |
| 5P Contact: | Brass |
| Contact Finish | Good Plate 15u” On Contact Area, Tin Plated On Solder Tail, Under Nickel |
