Description
Item No :ABH127-XXPS
| Specifications: | |
| Current Rating: | 1 mA |
| Dielectric Withstanding Voltage: | 500V AC |
| Insulation Resistance: | 1000 Megaohms |
| Operation Temperature: | – 40℃ to + 85℃ |
| Insulator | LCP Black |
| Contact: | Gold Flash Over All , Over Nickel |
Electrical Connectors, IDC Socket / Latch / Box Header

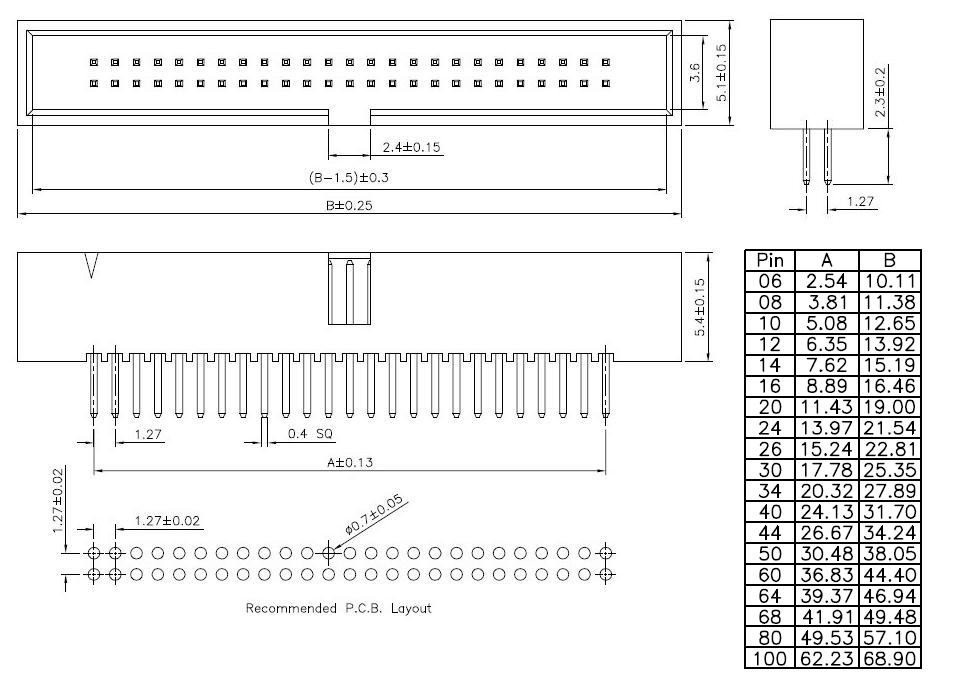

1.27 x 1.27mm Box Header
Code: ABH127-XXPS
Pitch 1.27 x 1.27mm / Straight Type
No. of Pin : 6 ,8 ,10 ,12 ,14 ,16 ,20 ,24 ,26 ,30 ,34 ,40 ,44 ,50 ,60 ,64 ,68 ,80 ,100 Pin
